Products

Bed Side Call / Cancel Units

EzyCall System

EZY800-SU-HEC-WJ

Help Emergency Cancel with Handheld Jack

  • Generate Help event, Emergency event and also cancel all existing events. With handheld jack installed, basic handheld, fall detection or floor pressure mat can be connected.
EzyCall System

EZY800-SU-EC-WJ

Emergency Cancel with Handheld Jack

  • Generate Emergency event and also cancel all existing events. With handheld jack installed, basic handheld, fall detection or floor pressure mat can be connected.
EzyCall System

EZY800-SU-EBC-WJ

Emergency Code Blue Cancel with Handheld Jack

  • Generate Emergency event, Code Blue event and also cancel all existing events. With handheld jack installed, basic handheld, fall detection or floor pressure mat can be connected.
EzyCall System

EZY800-SU-BC-NJ

Code Blue Cancel with Handheld Jack

  • Generate Code Blue event and also cancel all existing events.
EzyCall System

EZY800-SU-SBC-NJ

Staff Assist Code Blue Cancel without Handheld Jack

  • Generate Staff Assist, Code Blue and also cancel all existing events.
EzyCall System

EZY800-SU-PC-NJ

Present Cancel with Handheld Jack

  • Generate Present event and also cancel all existing events.
EzyCall System

EZY800-SSU-HEC-WJ

Help Emergency Cancel with Handheld Jack

  • Generate Help event, Emergency event and also cancel all existing events. This sub unit have build in microphone and speaker for two way intercom capability between this sub unit and Speech Enabled Desktop Unit..
EzyCall System

EZY800-SSU-HBC-WJ

Help Code Blue Cancel with Handheld Jack

  • Generate Call Event (via Handheld unit), Code Blue event, Emergency event and also cancel all existing events. This sub unit have build in microphone and speaker for two way intercom capability between this sub unit and Speech Enabled Desktop Unit.

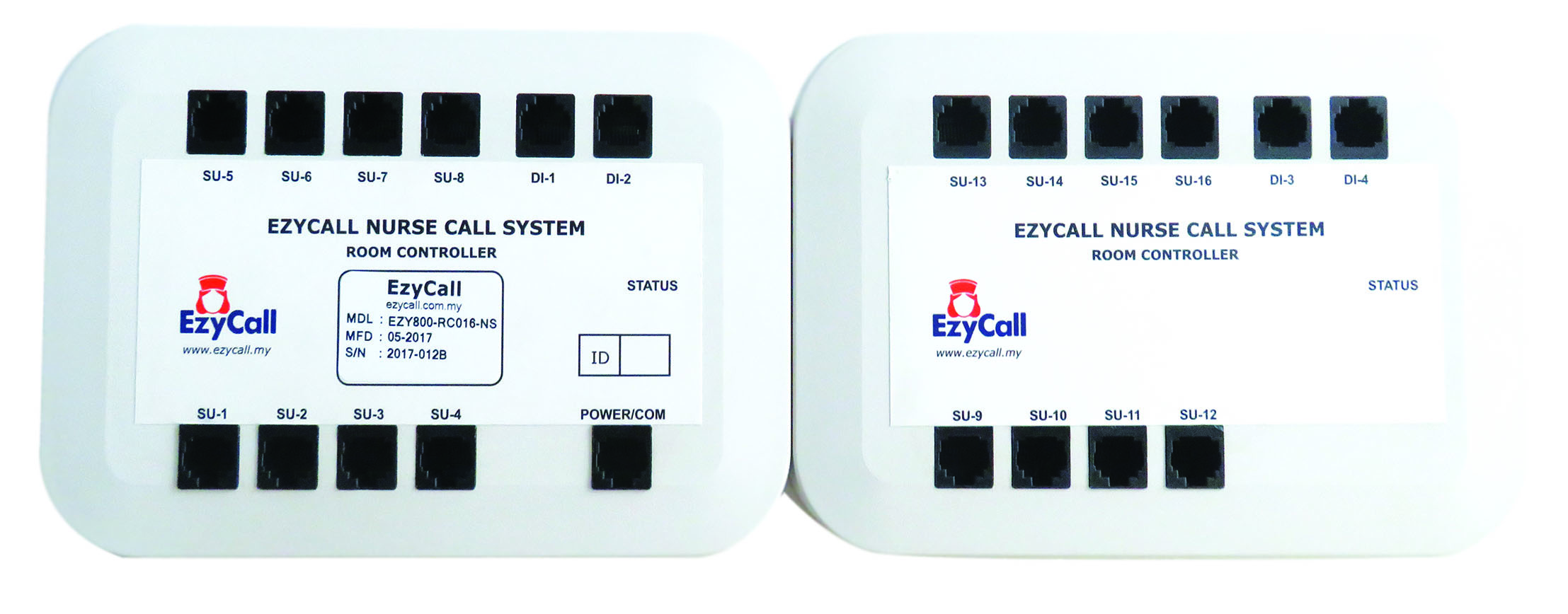

Room Controller

EzyCall System

EZY800-RC-16-NS


EzyCall System

EZY800-RC-08-NS

EZY800-SSU-HBC-WJ

EZY800-RC-SP

Description
  • This Room Controller has 8-channel sub unit connection and 2-unit overdoor indicator interface. Any type of sub unit can be connected to the 8-channel and over door indicator, the Room Controller Configuration software allows to configure the Room Controller.

  • This Room Controller have the RC-S support port where Room Controller Speech type can be connected.

Desktop Nurse Station

EzyCall System

EZY800-DST-SP

EzyCall System

EZY800-DST-NS

This version of Nurse Station is designed to give simple and effective nurse counter alerting solution. This unit communicate directly with Room Controller and all the configuration can be done from here. Using 8.0" Full Colour TFT, this nurse station provide easy navigation and advance programming capability.

Description
  • This unit is typically desktop placed to indicate incoming event and detail of each event can be displayed.

  • For each type of event dedicated alert audio will be generated. This audio alert can be changed to suit customer preference (only can be changed at factory or distributor lab). Automatic volume level control between day and night (7am to 7pm) will automatically adjust the volume during day and night.

  • Auto Screen save function will turn off the TFT screen when no event for more than 30 mins.

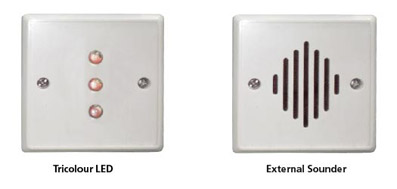

Alerting Units

Available Alerting Units

These alerting units can be connected to Room Controller to produce audio or visual alert

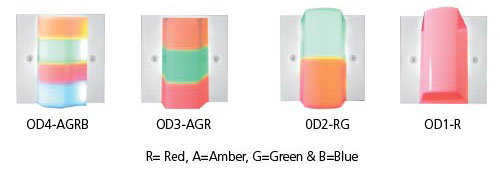

LED ROOM/BED INDICATORS

EzyCall System

WALL MOUNTED DOT MATRIX DISPLAY

EzyCall System

EZY800-RGBLED-SIG-SUD
EZY800-RGBLED-DUO-SUD


EzyCall System
EzyCall System

Washroom Call Units

EzyCall System
Description
  • Smaller, less obtrusive design

  • Wide openings in the base for incoming cables

  • Quicker installation – lid simply clicks into base and is secured in one twisting motion – no lid fixing screws required.

  • Improved confidence light – central diffuser emits bright glow over a wider area, providing better contrast for the visually impaired

  • Separate easy-to-fix pull cord with BS8300 compliant bangles prevents the cord getting tangled through first and second fix

Hand-held Unit

EzyCall System

EZY800-HH


Description

This handheld unit is give to patient so that they can call for help without pressing the HELP button on the sub unit. This unit is plugged into the sub unit that has Handheld Jack and it can be used to activate call or emergency event base on the connected sub unit.

Sealed design ensure that this call cord can be used safely in oxygen rich environments. Right angle jack ensure the call cord does not unplug when the cord is snapped.
We offer various length – the standard is 1500mm.

Pillow Speaker

EzyCall System

EZY800-PS-A

EZY800-PS-A


EzyCallTM Pillow Speaker is design to be used with health grade television or standard consumer television set.

EzyCallTM Pillow Speaker can be interfaced to any type of television which have audio line out (which is standard in any television system).

Nurse Station Controller

EzyCall System

EZY800-NSC-NS
EZY800-NSC-SP

EZY800-SSU-HBC-WJ

EZY800-NSC-SP

Description

This is the key component for the whole EzyCallTM Nurse Call System, this is the center system where all components are connected and managed from this station.

Maximum 15 Room Controller, 4 Display Line and 2 Desktop Line can be connected to EZY800-NSC-NS-1.

Speech Unit

Nursecall

Nursecall

Bed Head Speech Unit

Nurse Station

EzySoft Server Software

EzyCall System EzyCall System

EZY800-SERVER-LITE
EZY CALL Server Software Lite Version

EzySoft Server Software specifically designed to help managers and building owners take tighter control of their care facilities, EzySoft displays 'Real-Time' call, reset and room occupancy information and allows detailed data analysis reports to be generated on longest calls, most visited rooms, busiest shifts, average call response times and more.

EzySoft is an invaluable source of reference for evaluating staff performance, reviewing patient demands and determining optimum labour levels/shift patterns and has been known to save organisations huge cost and reputation.

EzySoft provides multiple data sharing path to HMS System, we can share all information via XML, HTTPXML or direct database access.

Features
  • Web Application – Can be accessed from any standard browser which is connected via LAN.

  • Unlimited User – No restriction on the number of user.

  • Code Blue Alerting – User Configurable Code Blue Alerting.

  • Call Transfer Management – User Configurable Call Transfer.

  • Floor Plan Manager – upload ward floor plan and place units on to floor plan.

  • Auto Reporting System – System automatically generate report.

  • Auto Email Report Manager – System will send out email report (if configured).

  • SMS Alerting – Send out SMS Alert if there is system/sub component failure.

  • Robust Operating System design for 24/7 operation.

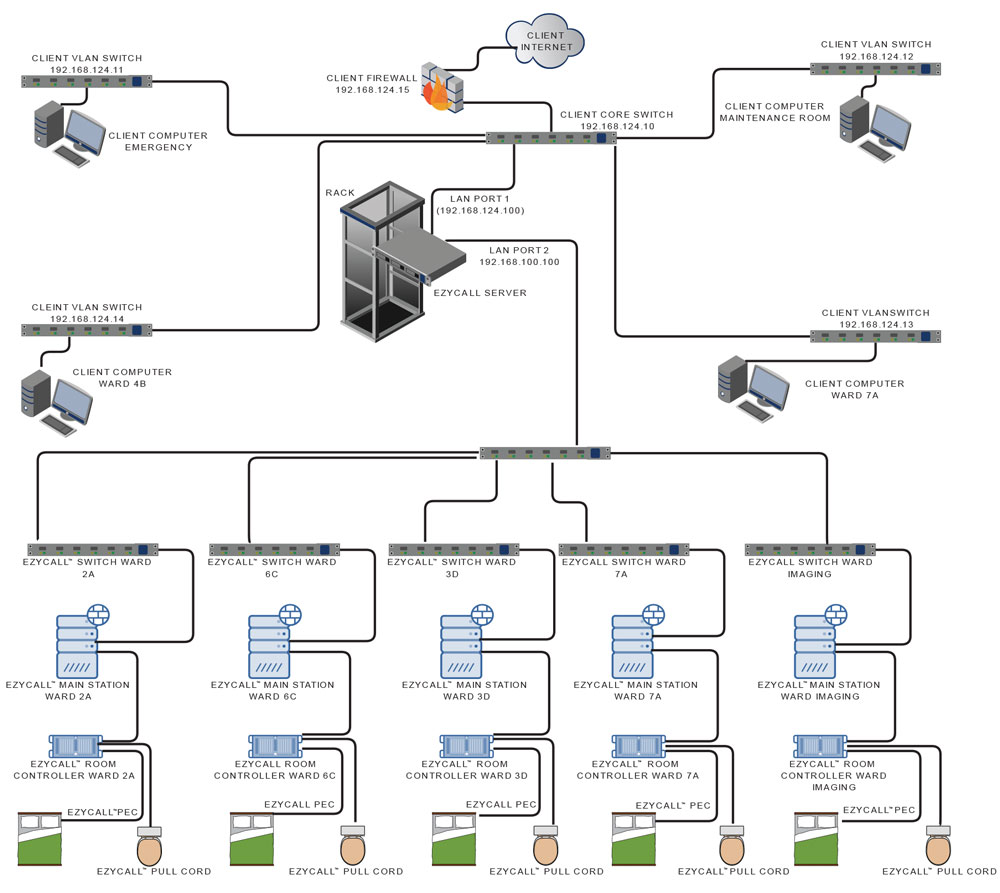

EzyCallTMServer Network Diagram

EzyCall Server Network Diagram

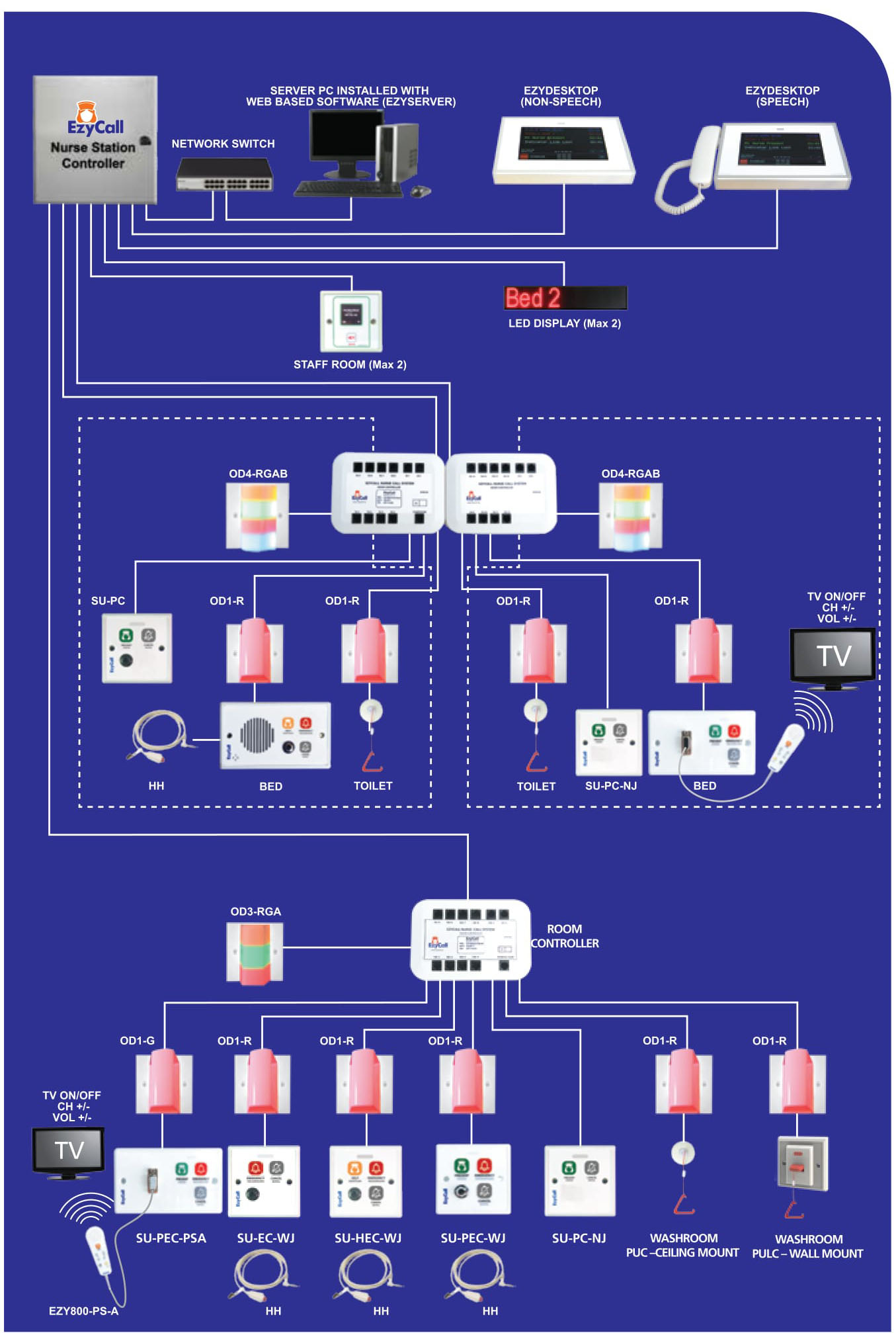

Modules & Components Overview

Wireless Nurse Call

Description

EzyCallTM Nurse Call System is designed using the latest Low Power Wide Area Network (LPWAN) technology to give wider coverage and lower battery consumption.

Compliant to Wireless Nurse Call Standard, the whole solution is designed from ground up to provide reliable wireless connection solution which can perform as per wired system.

We selected to use LORATM technology to ensure that system has a stable operation ISM Band. This LPWAN technology designed exclusively for IOT EcoSystem which is proved to operate in dense area.

Features

  • Base on LORATM with 32 Channel Spreading

  • Using Standard AA size battery, easy & lower cost battery replacement

  • Option for ultra low discharge battery, able to give 5x more operation life

  • Design & Developed base on UL 2560 & UL 1069

  • Continue Battery Fuel Gauge Monitoring System, will provide reliable battery capacity monitoring

  • Wireless Controller with build in WIFI for programming & PC interface

  • Optional OverDoor Indicator

  • Option LED Display Interface

  • Optional Router for extending coverage
