IP Nurse Call

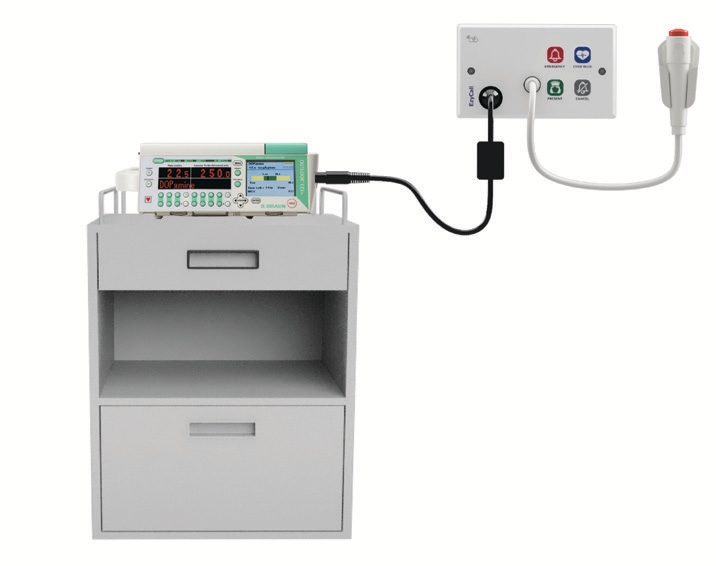

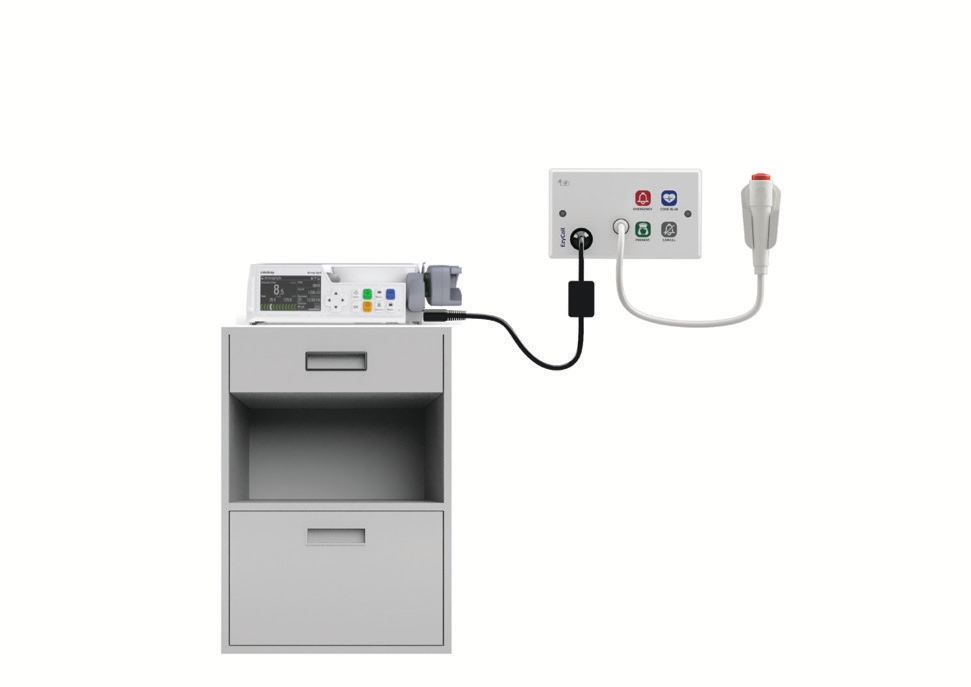

EzyCall® System Interface with Medical Equipments

EzyCall System EzyCall System
EzyCall System EzyCall System

Bed Head Faceplates

EzyCall® Nurse Call System incorporate various of sub-units to suit each installation. Beside English language, local language can be customized to enable easy patient usage. Large icon indicate the function of each button. All sub-units are designed such that it's water resistance and can be wiped clean with cleaning liquid. New sub-unit can be developed within 1–2 weeks to suit any installation requirement.

EzyCall System

Bedhead Faceplate c/w Handheld

EZY800IP-BSU-EBPC-WJ

  • Nurse Call
    i. Standard Call (Amber)
    ii. Emergency Call (Red)
    iii. Code Blue Call (Blue)
    iv. Present Call (Green)
    • 2. RFID For Staff Registration

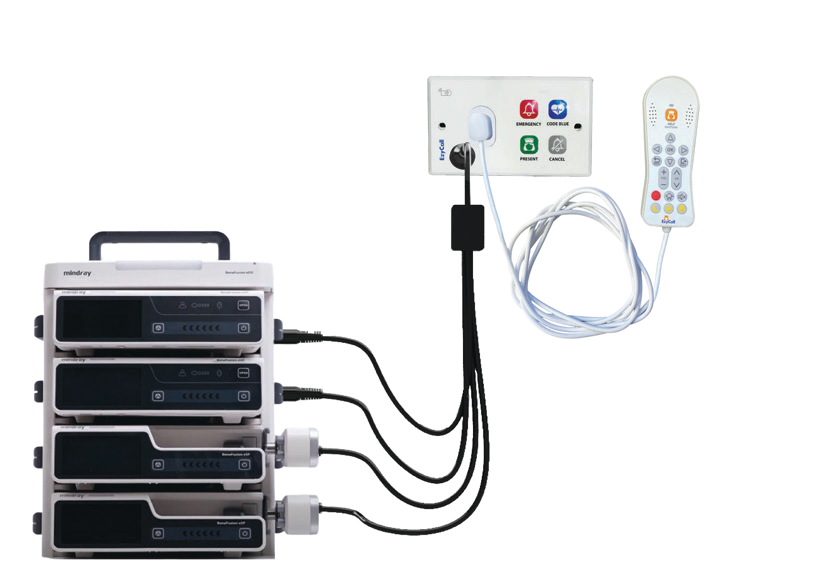

      3. Infusion / Syringe Pumps Input
EzyCall System

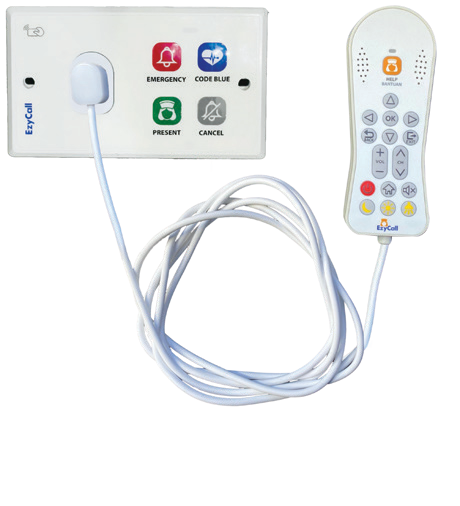

Bedhead Faceplate c/w Pillow Speaker

EZY800IP-BSU-EBPC-PS-V5

  • Nurse Call
    i. Standard Call (Amber)
    ii. Emergency Call (Red)
    iii. Code Blue Call (Blue)
    iv. Present Call (Green)
  • TV Control
    i. TV On / Off
    ii. Volume + / -
    iii. Channel + / -
  • 3. RFID For Staff Registration
    4. Infusion/Syringe Pumps Input
    5. Bed Light On/Off from Pillow Speaker
EzyCall System

Help Emergency cancel with Handheld Jack

EZY800IP-BSU-HEC-WJ

  • Generate Help event, Emergency event and also cancel all existing events. With handheld jack installed, basic handheld, fall detection or floor pressure mat can be connected.
EzyCall System

Call Present Emergency cancel with Handheld Jack

EZY800IP-BSU-PEC-WJ

  • Generate call (via handheld), present, emergency event and also cancel all existing events. With handheld jack installed, basic handheld, fall detection or floor pressure mat can be connected.
EzyCall System

Code Blue Cancel with Handheld Jack

EZY800IP-BSU-BC-NJ

  • Generate Code Blue event and also cancel all existing events.
EzyCall System

Staff Assist Code Blue cancel without Handheld Jack

EZY800IP-BSU-SBC-NJ

  • Generate staff assist, code blue and also cancel all existing events.
EzyCall System

Emergency Cancel with Handheld Jack

EZY800IP-BSU-EC-WJ

  • Generate Emergency event and also cancel all existing events. With handheld jack installed, basic handheld, fall detection or floor pressure mat can be connected.
EzyCall System

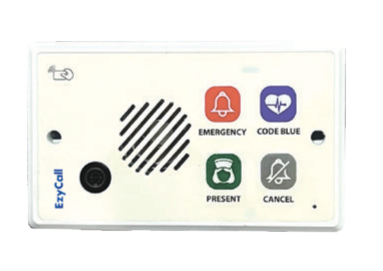

Bedhead Speech Faceplate

EZY800IP-BSU-EBPC-SP

  • Nurse Call
    i. Standard Call (Amber)
    ii. Emergency Call (Red)
    iii. Code Blue Call (Blue)
    iiii. Present Call (Amber)
    v. 2-way speech

Washroom Call Units

EzyCall System

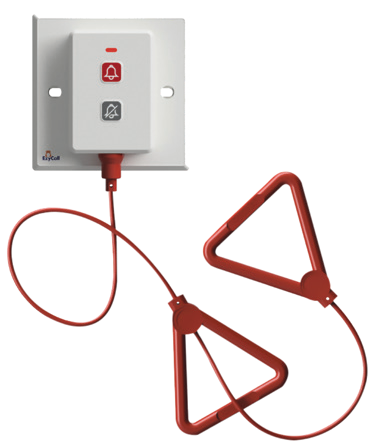

EZY800IP-PULL-V5 (Wall Mount)


Description
    • Smaller, less obtrusive design
    • Wide openings in the base for incoming cables
    • Quicker installation – lid simply clicks into base and is secured in one twisting motion – no lid fixing screws required!
    • Improved confidence light – central diffuser emits bright glow over a wider area, providing better contrast for the visually impaired
    • Separate easy-to-fix pull cord with BS8300 compliant bangles prevents the cord getting tangled through first and second fix

Hand-held Unit

EzyCall System

EZY800-HH


Description

This handheld unit is give to patient so that they can call for help without pressing the HELP button on the sub unit. This unit is plugged into the sub unit that has Handheld Jack and it can be used to activate call or emergency event base on the connected sub unit.

Sealed design ensure that this call cord can be used safely in oxygen rich environments. Right angle jack ensure the call cord does not unplug when the cord is snapped.

We offer various length – the standard is 3000mm.

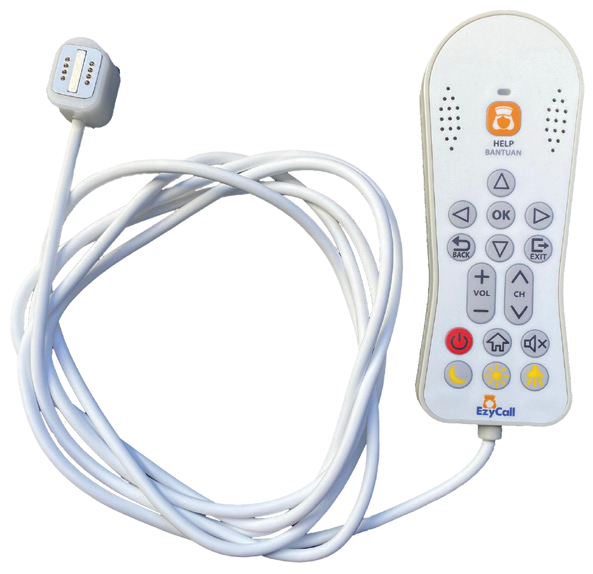

Pillow Speaker

EzyCall System

EZY800IP-PS-IPTV


Description

EzyCall® Pillow Speaker can be interfaced to any type of television which have audio line out (which is standard in any television system).

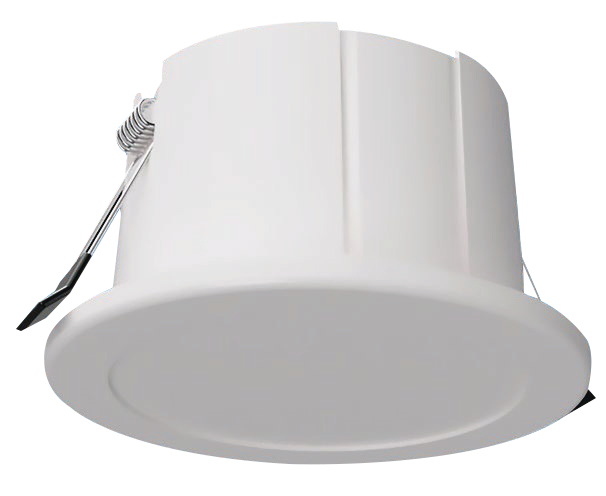

Washroom Fall Detection Subunit

EZY800IP-WC-FALL-DETECTION-V1


EzyCall System

Alerting Units

These alerting units can be connected to Room Controller to produce audio or visual alert


LED ROOM / BED INDICATORS

EZY800IP-OD-(A/G/R/B)


R=Red
A=Amber
G=Green
B=Blue

WALL MOUNTED DOT MATRIX DISPLAY

EZY800IP-LED-RGB-SINGLE-SUD
EZY800IP-LED-RGB-DOUBLE-SUD

EzyCall System

Ezy Console

EzyCall System

EZY800IP-DST17-NS

EzyCall System 2

EZY800IP-DST-NS

EzyCall System 3

EZY800IP-DST-SP

1. Nurse Call -

i. Standard Call (Amber) ii. Emeregency (Red) iii. Code Blue Call (Blue) iv. Present (Green)

Power Hub

EzyCall System

EZY800IP-PH16C


Description

1. Standard 16 Channel 10/100MBps Unmanaged Network Switch with 16 Channels Managed EZY800IP POE+

Room Controller

EzyCall System


EZY800IP-RC-4PS-8SU-8DI


Description
  • 1. Functions
      i. Overdoor Light Indicator (8 Port)
      ii. Subunit (8 Port)
      iii. Pillow Speaker Subunit (4 Port)

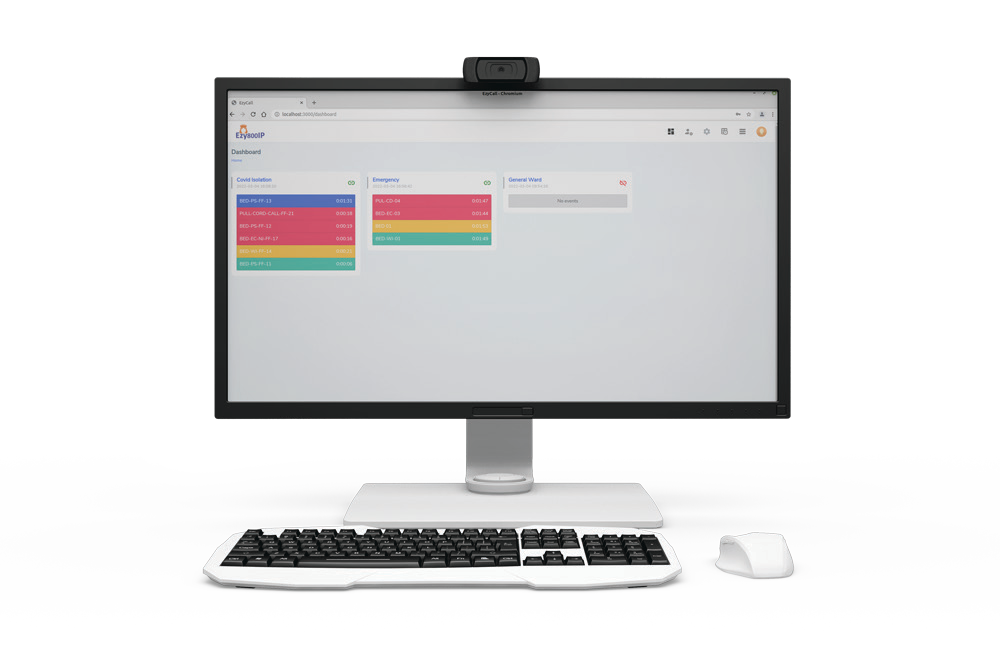

EzyCall® Server Software

EzyCall System
EzyCall System EzyCall System EzyCall System
Features

    • Web Application – Can be accessed from any standard browser which is connected via LAN.
    • Unlimited User – No restriction on the number of user.
    • Code Blue Alerting – User Configurable Code Blue Alerting.
    • Call Transfer Management – User Configurable Call Transfer.
    • Floor Plan Manager – upload ward floor plan and place units on to floor plan.
    • Auto Reporting System – System automatically generate report.
    • Auto Email Report Manager – System will send out email report (if configured).
    • Online Alerting – Send out WhatsApp or SMS Alert if there is system/sub component failure (require modem connectivity).
    • Robust Operating System design for 24/7 operation.

EzyCall® Server Network Diagram

EzyCall Server Network Diagram

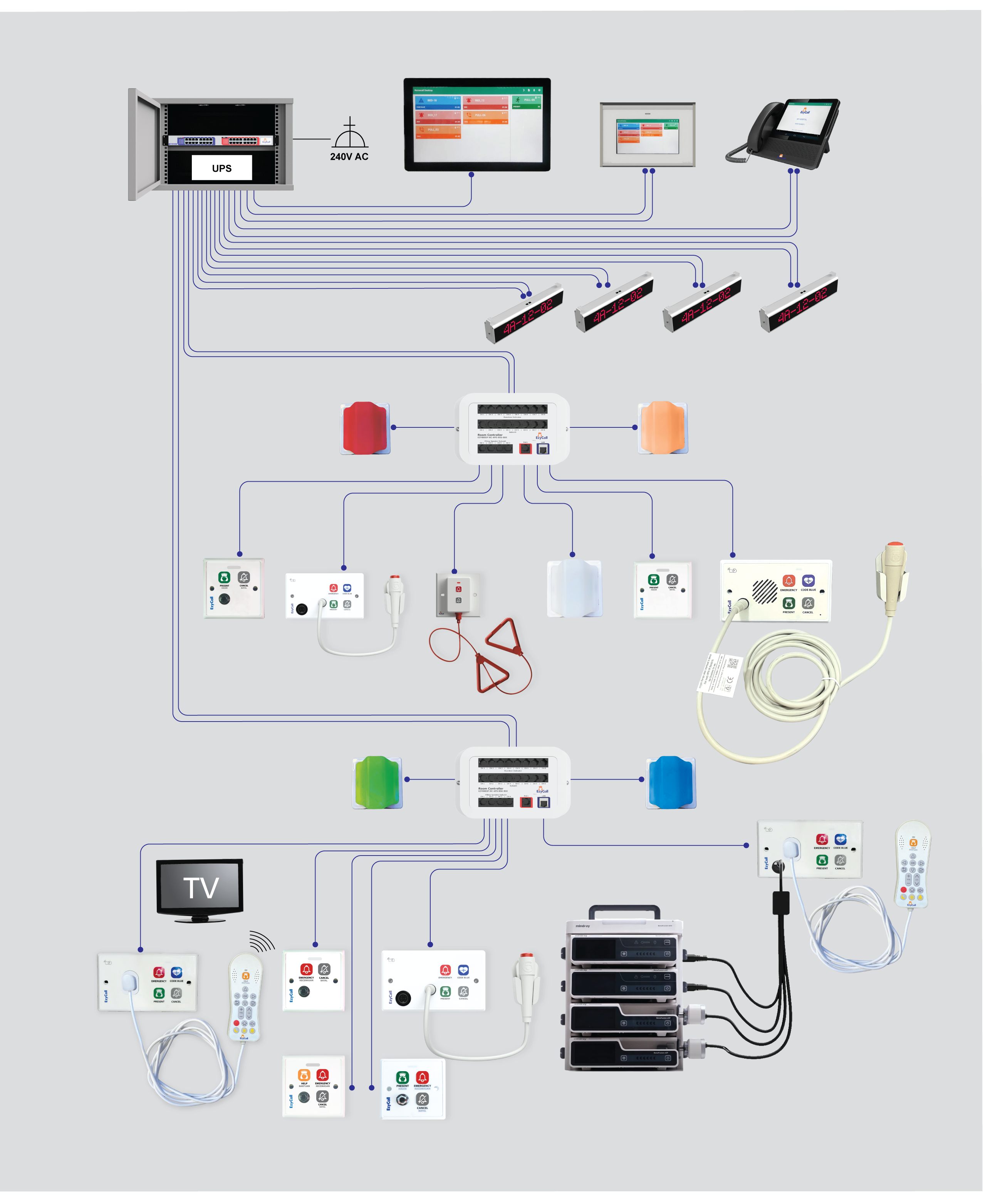

Modules & Components Overview
